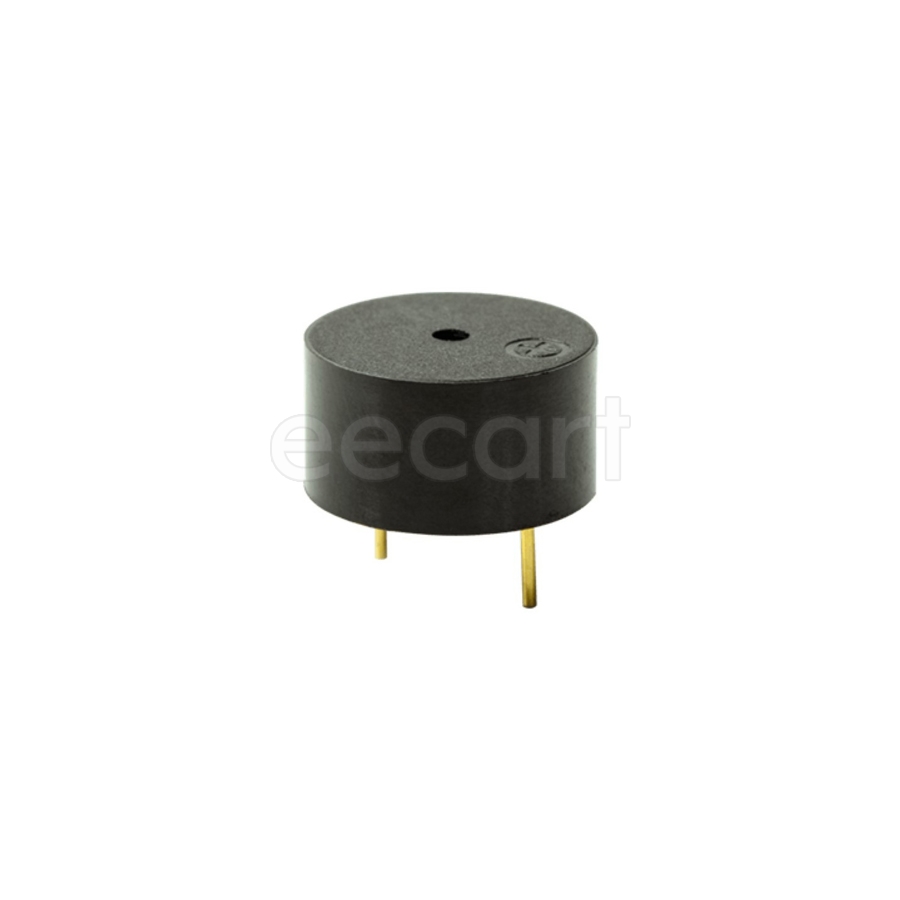

CEP-2242
Manufacturer:
Same Sky
Mfr.Part #:
CEP-2242
Datasheet:
Description:
Buzzers/Loudspeaker Through Hole 70 dB 4.1 kHz
| Parameter | Value |
|---|---|
| Length | 13.7 mm |
| Width | 13.7 mm |
| Termination | PC Pin |
| Diameter | 13.7 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 7.6 mm |
| Packaging | Bulk |
| Voltage Rating | 12 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Frequency | 4.1 kHz |
| Self Resonant Frequency | 4.1 kHz |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Operating Supply Current | 7 mA |
| Shape | Round |
| Washable | Yes |
| Schedule B | 8531800040 |
| Height - Seated (Max) | 8.1 mm |
| Ratings | Washable |
| Type | Piezoelectric Buzzer |
| Current Rating | 7 mA |
| Tone | Continuous |
| Sound Pressure Level | 70 dB |
Stock: 1071
Distributors
pcbx
pcbxUnit Price$1.90052
Ext.Price$1.90052
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.90052 | $1.90052 |
| 10 | $1.49310 | $14.93100 |
| 25 | $1.35981 | $33.99525 |
| 50 | $1.26793 | $63.39650 |
| 100 | $1.18323 | $118.32300 |
| 300 | $1.06221 | $318.66300 |
| 500 | $1.01096 | $505.48000 |
| 1000 | $0.94605 | $946.05000 |
| 3000 | $0.93960 | $2818.80000 |
| 5000 | $0.93320 | $4666.00000 |
